EZ-Wiring®

Eco-Friendly Manufactured Wiring System

Fast. Safe. Smart.

EZ-Wiring’s modular plug-and-play design expedites installation time of electrical wiring by up to 80%.

Patented technology provides safe, consistent and long-lasting connections in a relocatable and re-usable modular wiring system.

Intuitive plug-in connections ensure safe and cost-effective moves, adds, changes lowering maintenance and alteration costs.

Constructed with halogen-free RoHS-compliant materials, EZ-Wiring is the environmentally-responsible modular wiring system.

Suitable for use in all areas of building branch circuiting (ceilings, walls, raised floors).

UL (E208243)CSA (LR91749)

EZ-Wiring Components are tested to UL 183 (QQVX) standards and CSA 22.2 No.203.1 are UL listed and CSA Certified.

EZ-Wiring System Layout

EZ-Wiring Configuration Matrix

EZ-Wiring

Starter Cable

EZ-Wiring Starter CableProvides power supply connection and interface between conventional hardwiring and EZ-wiring components.

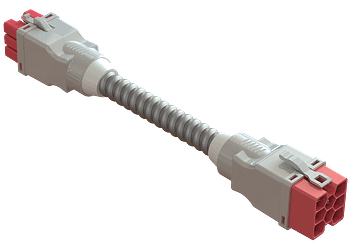

Extender Cable

EZ-Wiring Extender CableProvides plug-in connection of components within the modular wiring system.

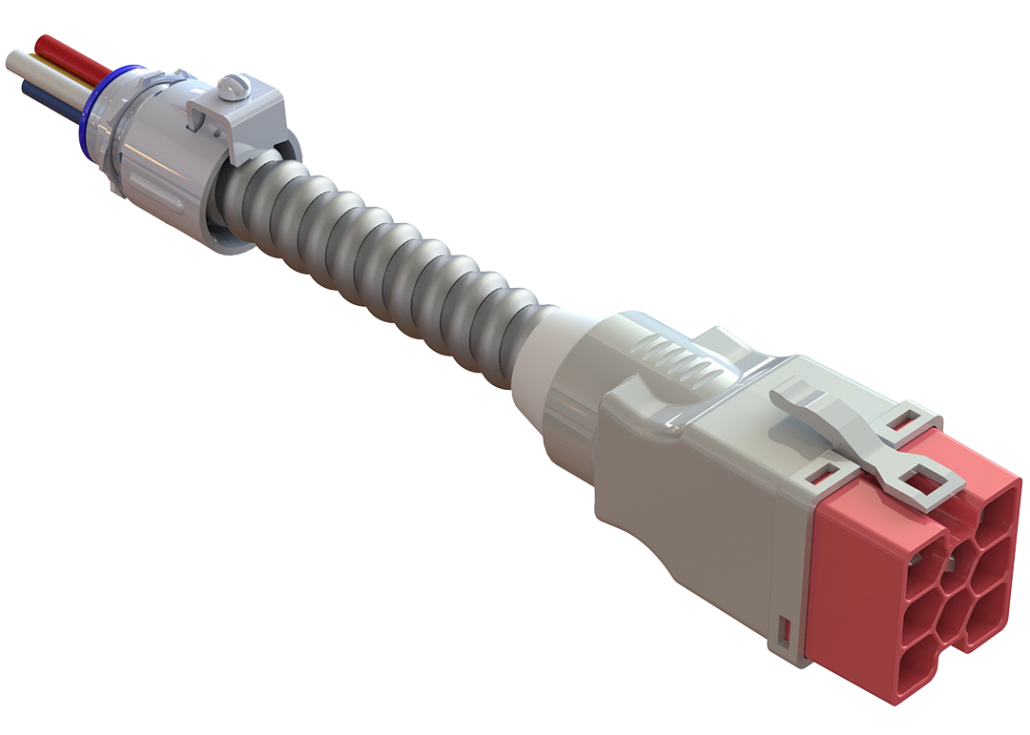

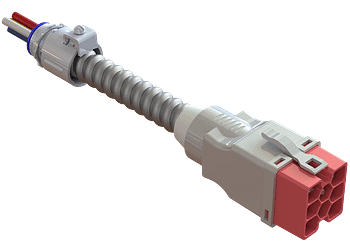

Drop Cable

EZ-Wiring Drop CableProvides connection to devices such as receptacles, switches, floor boxes, furniture and light fixtures.

Single Receptacle

EZ-Wiring Single ReceptacleProvides power supply connection and interface between hardwiring and EZ-Wiring.

Single Plug

EZ-Wiring Single PlugProvides connection to equipment such as light fixtures, furniture systems, raised floor devices and wall outlets.

Fixture Tap

EZ-Wiring Fixture TapProvides interconnection of light fixtures.

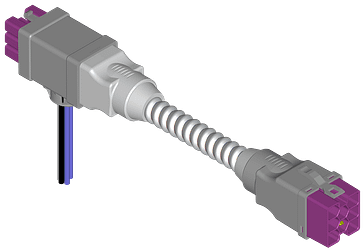

Fixture Whip

EZ-Wiring Fixture WhipProvides interconnection to and between light fixtures.

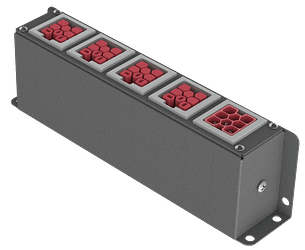

Multi-Tap

EZ-Wiring Multi-TapProvides quick, simple, safe, cost-effective power or switch tap solution.

Primary Distribution Unit (PDM)

EZ-Wiring Primary Distribution Unit (PDM)Delivers Main Distribution Point for EZ-Wiring MWS.

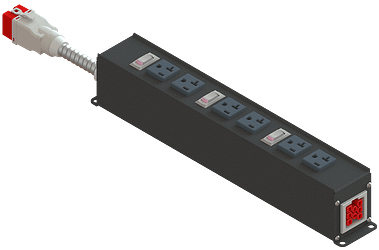

Multi-circuit Power Hub

EZ-Wiring Multi-circuit Power HubMulti-circuit (up to 4) Outlet Strip, available in various configurations.  Can be daisy chained together.

Round Raised Floor Box

EZ-Wiring Round Raised Floor BoxProvides quick, simple, safe, cost-effective installation of a wide variety of configurations.

Prewired Plug-in Assemblies

EZ-Wiring Prewired Plug-in AssembliesReceptacles, switches and other Devices in either single or two gang arrangements.

Features and Benefits:

  • ELECTEC EZ-Wiring® components are UL Listed to be in compliance with UL 183 – Manufactured Wiring Systems (QQVX) and CSA Certified to be in compliance with CSA 22.2 No.203-1 – Manufactured Wiring Systems.
  • Constructed using ULTRALX® MC/AC90* cable (300lbs Tension), minimum 12AWG stranded conductors rated 600V 20A.
  • Robust terminal design exceeds 470Amp for 4 seconds.
  • EZ-Wiring Connectors are integrally moulded (fully encapsulated) utilizing high impact Halogen-free, Eco-Friendly, Low Smoke, UL94-V0 rated, Oxygen Index – 33 %, RoHS-compliant polymers for superior strength, reliability and safety.
  • Dielectric Withstand 3000Vac.
  • Mating connectors are self-latching and shrouded for added protection.
  • Uniquely-keyed and colour-coded to clearly indicate ratings and provide safe, simple, error-free connectivity. Only connectors having identical colours can plug together properly.
  • Approved “Ballast Disconnect Means” per NEC 410.73(g) and CEC Part 1 30-308(4).
  • Suitable for use in environmental air handling spaces (plenums) per NEC 300-22(c) and CEC Part 1 12-010(3)
  • Acceptable for interrupting current (make or break) under full load.
